Fault code quick clearing; elm327 decoder; engine fault data flow code card; elm327 fault detector; obd 2 diagnostic code card; vehicle informati
1.Handheld fault diagnosis + Bluetooth APP dual operation experience, handheld and Bluetooth 2-in-one diagnostic instrument,
2.Quick clearing of the fault code, elm327 Fault detector, The OBD 2 diagnostic code reader, Vehicle information reading code card, Car battery diagnostic instrument,
3.Diesel vehicle battery diagnostic instrument, Motorcycle / yacht battery diagnostic machine, Automotive diagnostic tool, Gas machine fault detector,
4.elm327 fault detector, obd 2 diagnostic code card, vehicle information reading card. Factory direct selling (OBD connector)
Details:
SPU: PSV322
Trade name: Fault code quick clearing; elm327 decoder; engine fault data flow code card; elm327 fault detector; obd 2 diagnostic code card; vehicle information reading card. Factory direct selling (OBD connector)
technical parameter
Master control chip: crystal element
Operating voltage: 9-16V
Operating current: 75mA
Operating temperature: -20℃ 65℃
Product size: 153.2*88.6*23.3mm
Packaging size: 200 * 130 * 43mm
Product weight: 208g
With packaging: 301g
Quantity quantity: 40 pcs
product description

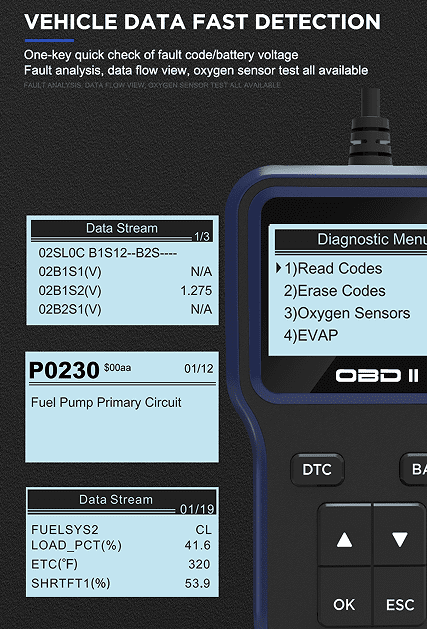

1. Read the errors and clear the diagnostic codes
2. Quickly determine the reason for checking the engine lamp
3. Oxygen sensor test
4. The EVAP test at No
5. Frozen the frame data
6.I / M data
7. View the vehicle information
8. Automotive data flow
9. Real-time curve
8. Support for 6 languages: English; German; Spanish; French; Italian; Dutch; Russian; and Chinese
9. Color screen display 2.8
10. Communication mode; OBD interface
11.CE/FCC/ROHS/UKCA Certification
Support agreement
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init; 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init; 10.4 Kbaud)
5. ISO14230-4 KWP (fast init; 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID; 500 Kbaud)
7. ISO15765-4 CAN (29bit ID; 500 Kbaud)
8. ISO15765-4 CAN (11bit ID; 250 Kbaud)
9. ISO15765-4 CAN (29bit ID; 250 Kbaud)
Reference Price (FOB)
1. Single product price; USD50.00
2.≥50set; USD30.00
3.≥100set; USD27.00
4.≥150set; USD24.30
5.≥200set; USD21.90
6.≥250set; USD19.70
7.≥300set; USD17.10
8.≥500set; USD16.00
Support one product one generation order business
More commodity specifications and preferential policies; welcome the letter to consult the business
