PS003000008.FOR Honda CR-V (2017-2019) Wireless car charger. Built-in fast charging chip; large coil configuration; charging efficiency is higher. C
1.The wireless charger uses the DC input. Built-in car standard level charging coil, compatible with a variety of mobile phone wireless fast charging.
2.A number of safety protection functions, in line with the wireless charging standards, safe power and stable connection.
3.Nano anti-slip silicone, to prevent mobile phone offset, environmentally friendly material ABS + PC
4.15W super-large coil, short-circuit protection, overcurrent protection
5.Support for QC3.0 fast charging protocol
Details:
EAN: 6975913481021
Commodity code: PS003000008.
Trade name: PS003000008.FOR Honda CR-V (2017-2019) Wireless car charger. Built-in fast charging chip; large coil configuration; charging efficiency is higher. Compatible with multi-brand mobile phone models of special multifunctional wireless vehicle charger.
Environmental protection materials: ABS + PC
Coil design: a large effect of a single coil
Emission power: 10W / 5W
Conversion efficiency: 75% +
Input parameters: 9-16V
Output parameters: 5-9V
Operating temperature: -20℃ + 70℃
Operating frequency: 110 KHz-143 KHz
Input interface: power supply
Charging mode: electromagnetic induction [wireless terminal] USB

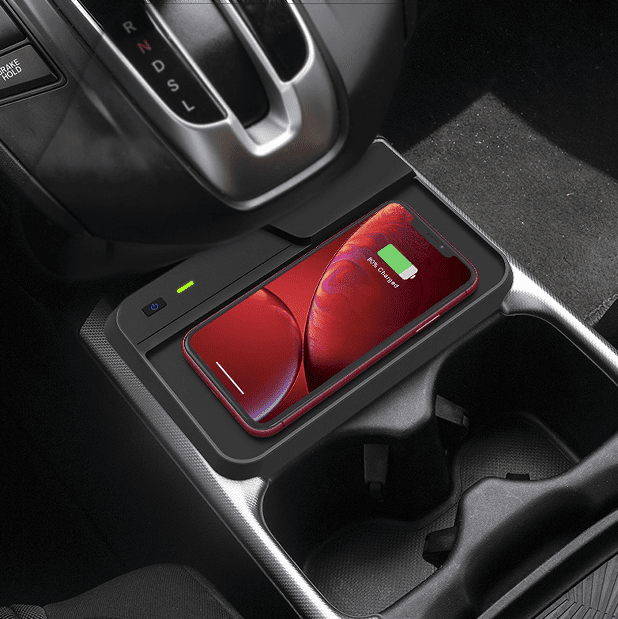

Installation location: central content box
Wireless charging induction distance: less than 4mm
Charging indicator: green is standby; blue is charging; red is foreign or abnormal
Left and right steering wheel driving universal.
Already passed through the CE FCC RoHS
Product Size: 23 * 15 * 5cm
Commodity weight: 0.33kg
PC/CTN
Product auspicious feeling:
1. Wireless charger uses DC DC input. Built-in car standard level charging coil; compatible with a variety of mobile phone wireless charging.
2. A number of safety protection functions; in line with wireless charging standards; safe power and stable connection.
3. Constant temperature charging; reasonable control of working temperature; cold air cycle air intake design.
4. Nano anti-slip silicone; prevent mobile phone offset; environmental protection material ABS + PC.
5. Support QC3.0 fast charging protocol.
6.15W Very large coil; short circuit protection; overcurrent protection. Straight plug-in installation; the left steering wheel driving common.
matters need attention:
1. Make sure that there is no debris on the charging pad.
2. Put the phone or other compatible device on the charging panel and indicate that the battery is charging when the blue indicator light is on; when the green indicator light is on; the battery is fully charged.
3. It is normal for the charging pad and the mobile phone to get hot. If you use the mobile phone (such as playing music) when charging; the charging pad and the mobile phone may become hotter.
4. Charging indicator light green is in standby state; blueis in charging; and redis in foreign body or abnormal.
Support one product one generation order business
More commodity specifications and preferential policies; welcome the letter to consult the business
