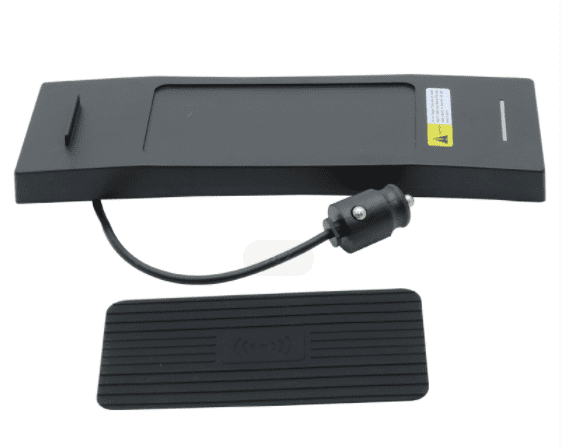

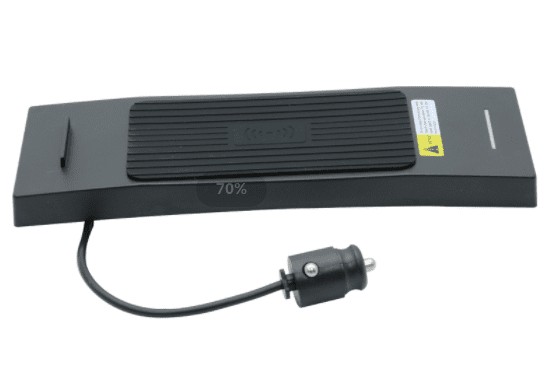

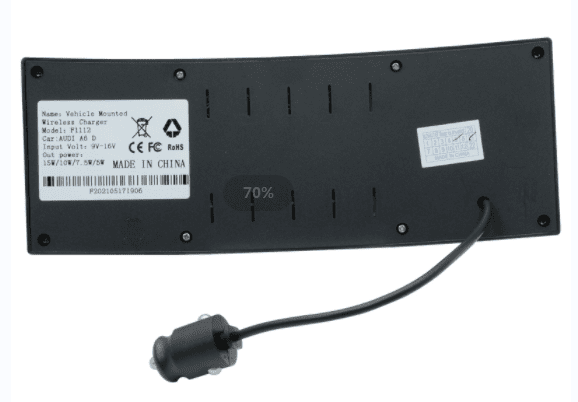

PSF1122. For Audi A6 / A6L; S6; RS6; A7; S7; RS7 (2009-2022) wireless vehicle charger. In line with QI wireless charging standards; compatible w
1.The wireless charger uses the DC input. Built-in car standard level charging coil, compatible with a variety of mobile phone wireless fast charging.
2.A number of safety protection functions, in line with the wireless charging standards, safe power and stable connection.
3.Nano anti-slip silicone, to prevent mobile phone offset, environmentally friendly material ABS + PC
4.15W super-large coil, short-circuit protection, overcurrent protection
5.Support for QC3.0 fast charging protocol
Details:
EAN:
Commodity code: PSF1122.
Trade Title: PSF1122. For Audi A6 / A6L; S6; RS6; A7; S7; RS7 (2009-2022) wireless vehicle charger. In line with QI wireless charging standards; compatible with multi-brand mobile phones; Bluetooth headphones; electronic watches; car keys and other electronic devices for automatic induction charging. Built-in fast charging chip; large coil configuration; higher charging efficiency; OEM quality level.
Environmental protection materials: ABS + PC
Coil design: a large effect of the single coil
Emission power: 15W / 10W
Conversion efficiency: 75% +
Input parameters: 9-16V
Output parameters: 5-9V
Operating temperature: -20℃ + 70℃
Operating frequency: 110 KHz-143 KHz
Input interface: power supply
Charging mode: electromagnetic induction [wireless terminal] USB
Installation location: central content box
Charging indicator: green is standby; blue is charging; red is foreign or abnormal
Left and right steering wheel driving universal.
Already passed through the CE FCC RoHS
Product Size: 30 * 20 * 8 cm
Commodity weight: 0.60kg
PC/CTN/ctn
Product auspicious feeling:
1. Wireless charger uses DC DC input. Built-in car standard level charging coil; compatible with a variety of mobile phone wireless charging.
2. A number of safety protection functions; in line with wireless charging standards; safe power and stable connection.
3. Constant temperature charging; reasonable control of working temperature; cold air cycle air intake design.
4. Nano anti-slip silicone; prevent mobile phone offset; environmental protection material ABS + PC.
5. Support QC3.0 fast charging protocol.
6.15W Very large coil; short circuit protection; overcurrent protection. Straight plug-in installation; the left steering wheel driving common.
matters need attention:
1. Make sure that there is no debris on the charging pad.
2. Put the phone or other compatible device on the charging panel and indicate that the battery is charging when the blue indicator light is on; when the green indicator light is on; the battery is fully charged.
3. It is normal for the charging pad and the mobile phone to get hot. If you use the mobile phone (such as playing music) when charging; the charging pad and the mobile phone may become hotter.
4. Charging indicator light green is in standby state; blueis in charging; and redis in foreign body or abnormal.
Support one product one generation order business
More commodity specifications and preferential policies; welcome the letter to consult the business
